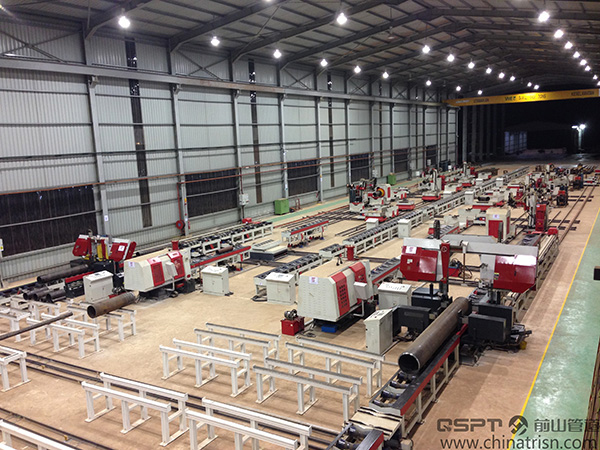

Pipe Fabrication Production Line
321

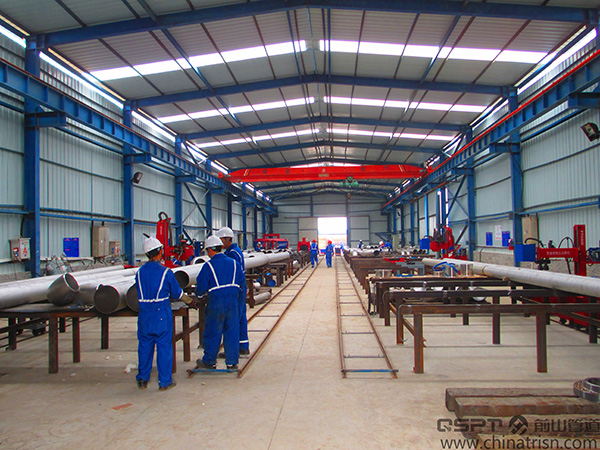

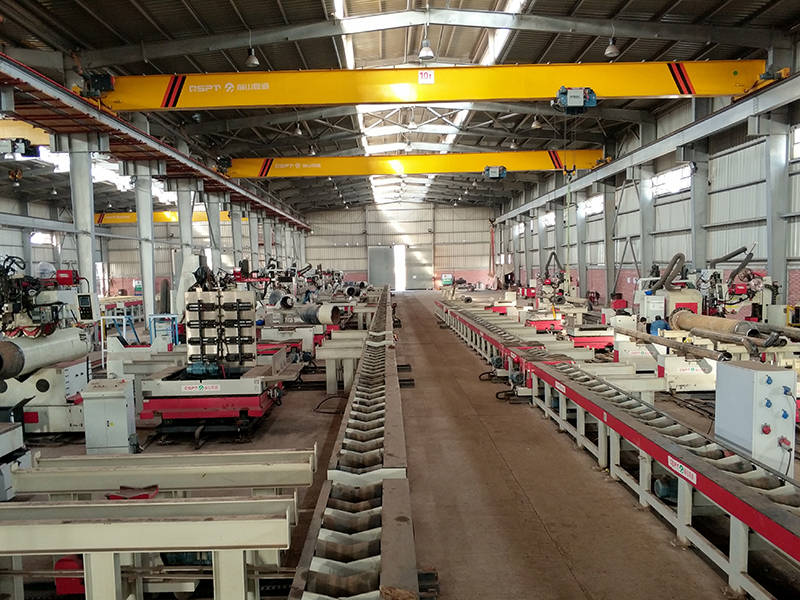

  • Pipe Fabrication Production Line (Fixed Type)The basic configuration of the pipe fabrication production line consists of one set of fixed-type high speed pipe cutting and beveling machine, one set of roller-bench-type pipe plasma cutting and beveling machine, one set of high speed pipe cutting band saw machine + two sets of fixed-type pipe end beveling machine, many sets of piping prefabrication fast fitting-up machine, many sets of piping prefabrication automatic ...

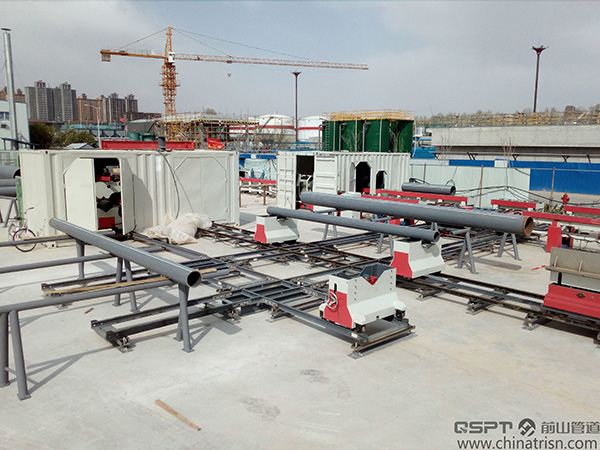

  • Pipe Fabrication Production Line (Transportable Type)The basic configuration of the pipe fabrication production line consists of many sets of pipe cutting and bevel machining workstation, many sets of mechanical fitting-up workstation, many sets of piping automatic welding workstation, a set of conveying system and a set of steel structure pipe racks.
    The pipe fabrication production line offers high production efficiency - hoisting with cantilever crane ...
  • Pipe Fabrication Production Line (Numerical Control Type)The basic configuration of the pipe fabrication production line consists of one set of fixed-type high speed pipe cutting and beveling machine(plc), one set of roller-bench-type pipe plasma cutting and beveling machine(nc), one set of high speed pipe cutting band saw machine + two sets of fixed-type pipe end beveling machine(plc), many sets of piping prefabrication fast fitting-up machine, many sets of piping prefabrication ...
Pipe Fabrication Workstation

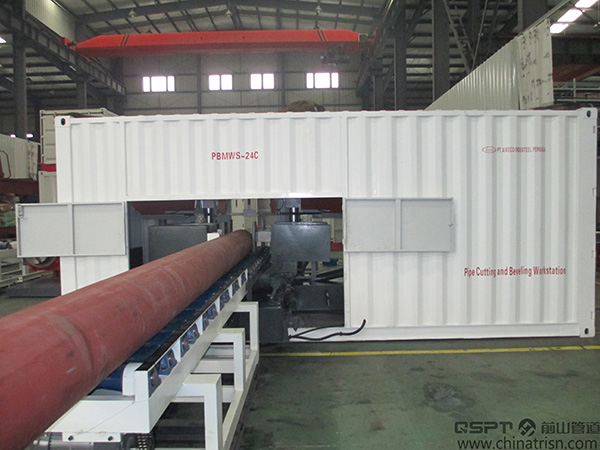

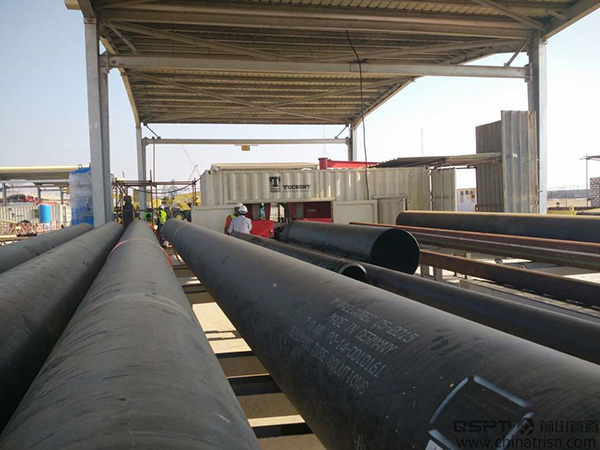

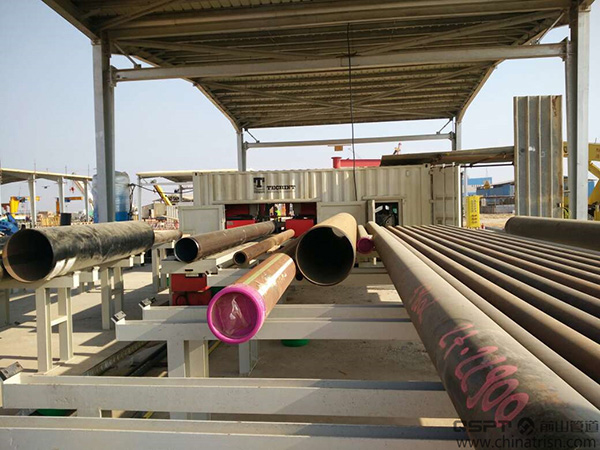

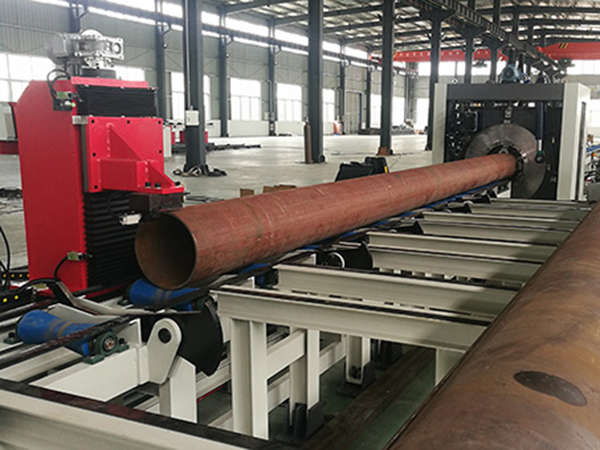

  • Pipe Cutting and Beveling Workstation (Type-A)The basic configuration of the pipe cutting and beveling workstation consists of one 6m container with special retrofit, one set of fixed-type high speed pipe cutting and beveling machine, one set of conveyer system for cutting and beveling machine, one set of mechanical cutting length-measuring system (option), and two sets of cantilever cranes(option).
  • Pipe Cutting and Beveling Workstation (Type-B)The pipe cutting and beveling workstation offers a production capacity of ≤2min /two pipe bevels (DN200 SCH40).
    It offers excellent mobility (without limitation of radiation radius when using container as carrier).
    The bevel quality is good.
  • Pipe Cutting and Beveling Workstation (Type-C)The pipe cutting and beveling workstation is used for cutting and beveling of the pipes with heavy wall thickness.
    Pipe Diameter Applicable: DN50-400 (φ60-426mm)/DN100-600 (φ114-610mm)
    Pipe Wall Thickness Applicable: 4~90/5~180MM

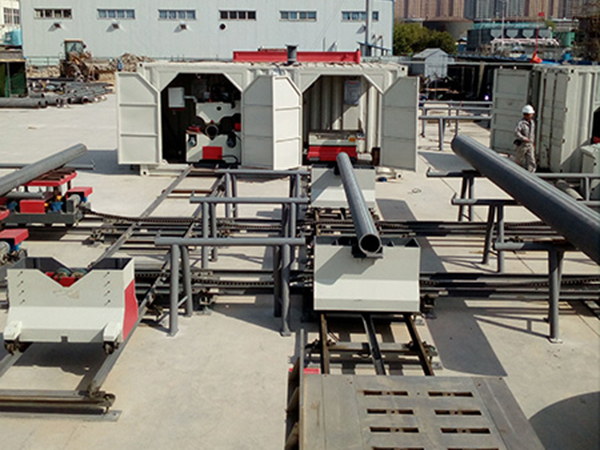

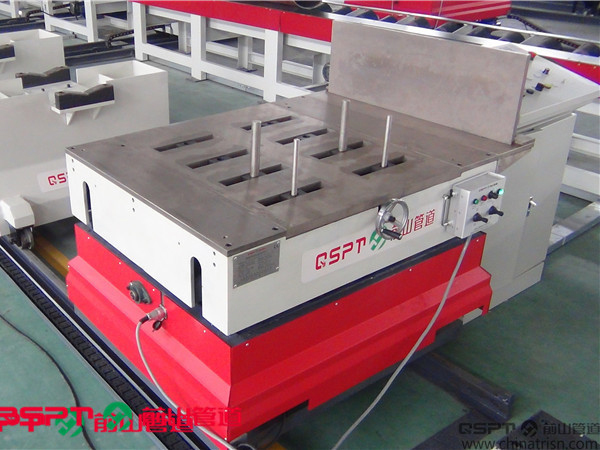

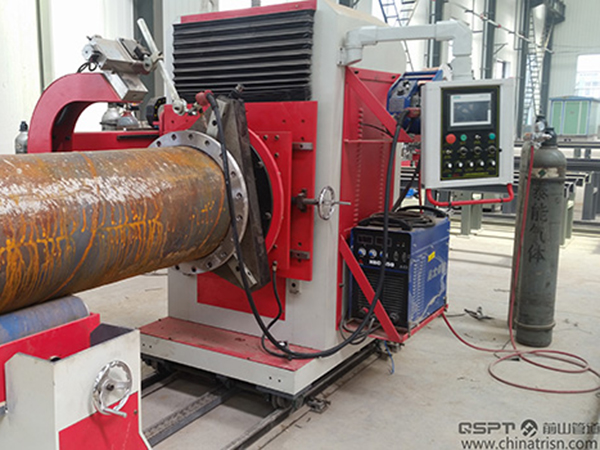

  • Mechanical Piping Fitting-Up WorkstationThe basic configuration of the mechanical piping fitting-up workstation consists of one piece of 3m/6m/3m/6m container made with special retrofit and one/two/one/two set(s) of piping prefabrication quick fitting-up machine.
    The mechanical piping fitting-up workstation offers a production efficiency of 250~500 O.Diameter-Inch ...

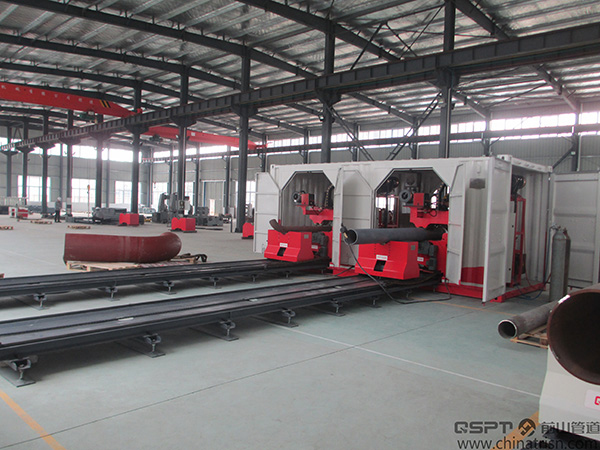

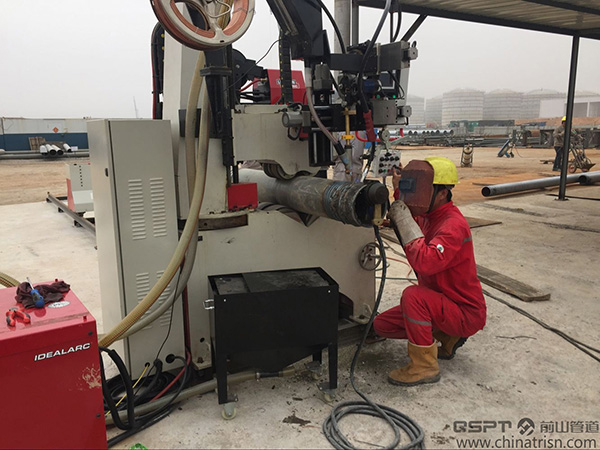

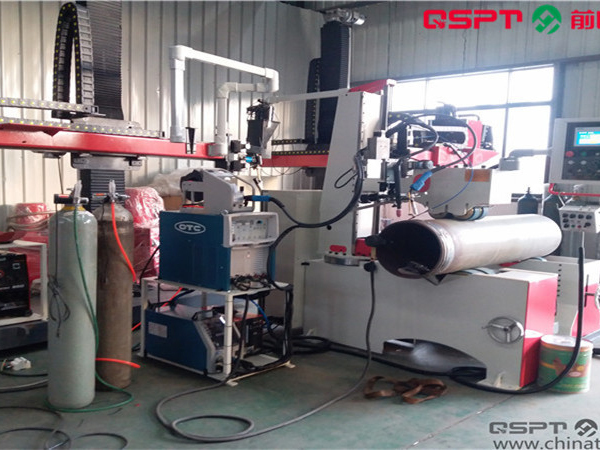

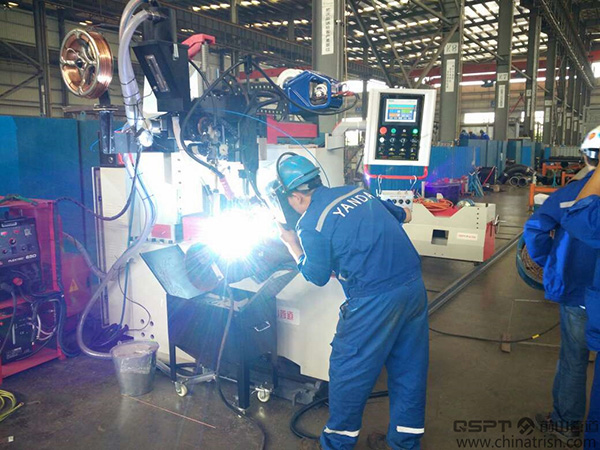

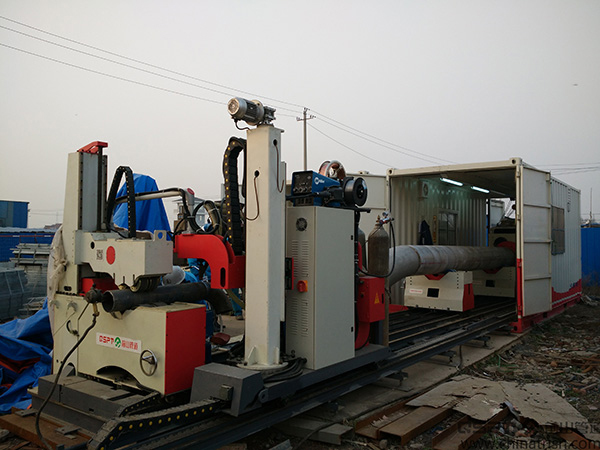

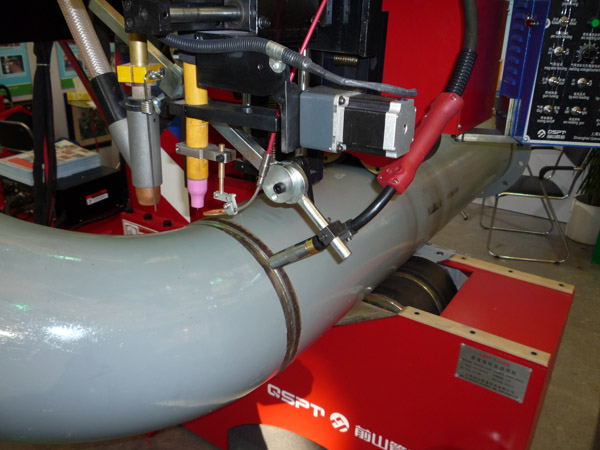

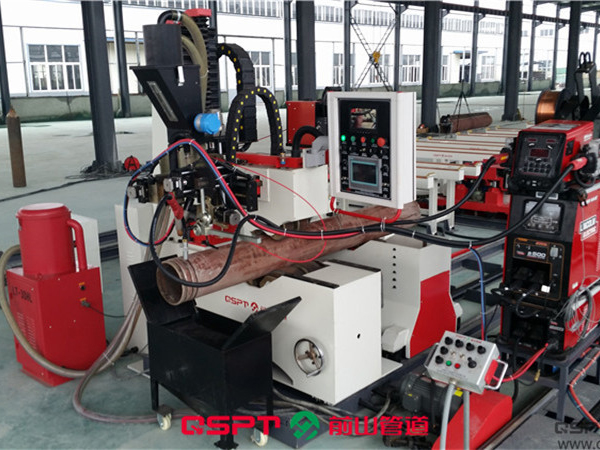

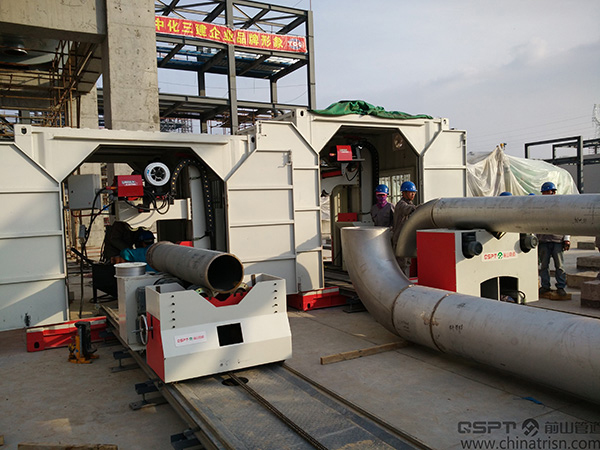

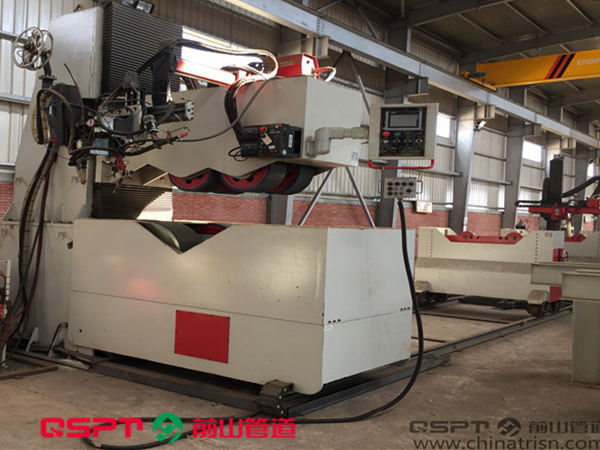

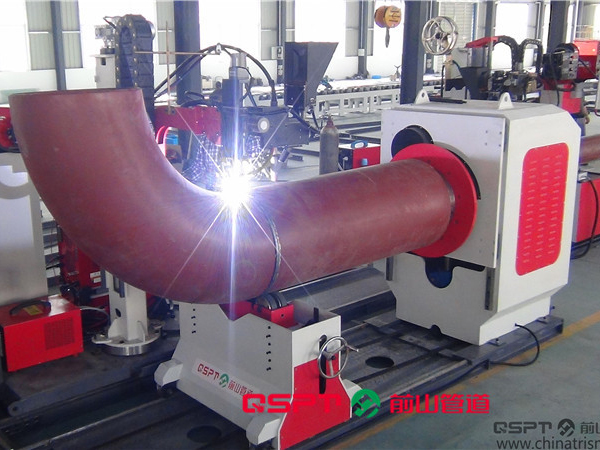

  • Automatic Piping Welding Workstation (Type-A)The production efficiency of the automatic piping welding workstation is 450~650 O.D-Inch per day (DN200 SCH40).
    It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).
    Pipe Diameter Applicable: DN50~600(φ60~610)/DN50-600 (φ60-610)/DN50-300 (φ60-325)/DN150-600 ...

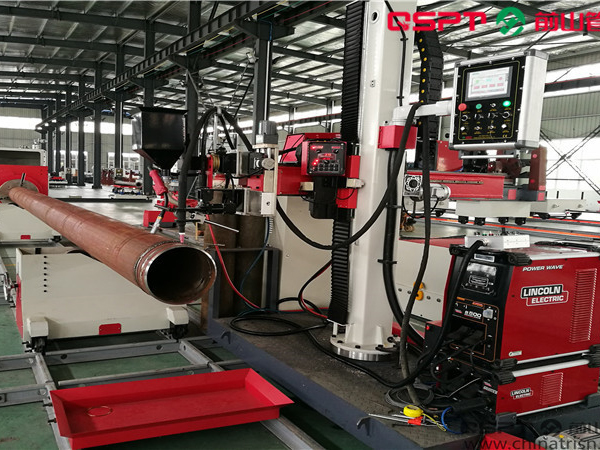

  • Automatic Piping Welding Workstation (Type-C)The basic configuration of the automatic piping welding workstation consists of one piece of 6m container made with special retrofit, one set of piping prefabrication automatic welding machine+one piping cantilever automatic welding machine; or one set of piping prefabrication automatic welding machine+one set of automatic portable piping welding machine ; or one set of piping prefabrication automatic welding ...
  • Automatic Piping Welding Workstation (Type-D)The automatic piping welding workstation is used for projects with a majority of standard wall thickness pipes and few heavy wall thickness pipes. It can also be used for projects with a majority of heavy wall thickness pipes and few standard wall thickness pipes (PAWWS-24Dd).
    Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
Pipe Fabrication Cutting Equipment

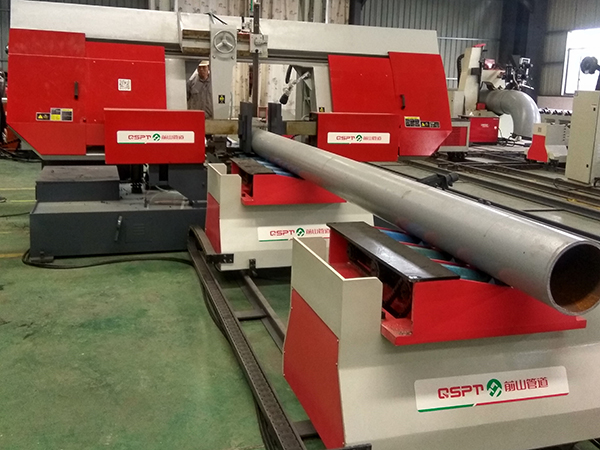

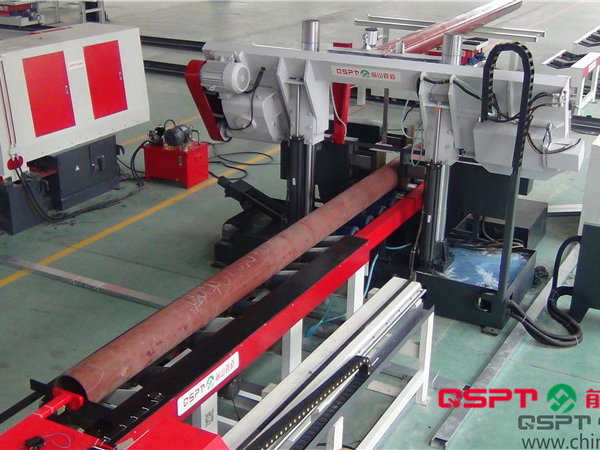

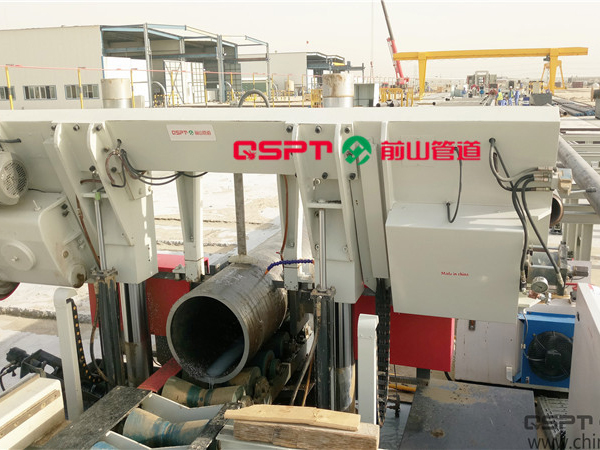

  • High Speed Pipe Cutting Band Saw MachineThe high speed pipe cutting band saw machine offers good on-line performance (designed as per the one line equipment of the production line).
    The cutting efficiency is ≤2Min /one pipeline bevel (DN200 SCH40).
    The high speed pipe cutting band saw machine has good opening quality.
  • Numerical Control Pipe Cutting Band Saw MachineThe numerical control pipe cutting band saw machine offers good on-line performance (designed as per the on-line equipment of the production line).
    It offers a cutting efficiency of ≤2Min /pipeline bevel (DN200 SCH80).
    The numerical control pipe cutting band saw machine has good opening quality.
  • Pipe Flame Beveling and Cutting Machine (Roller Bench Type)The pipe flame beveling and cutting machine offers a beveling speed of ≤3Min /pipe bevel (DN200 SCH40)/≤5Min/two pipe bevels (DN200 SCH40).
    It offers bevel cutting: Cutting off and with one bevel of the pipe at simultaneously for/cutting off and with two bevels of the pipe simultaneously.

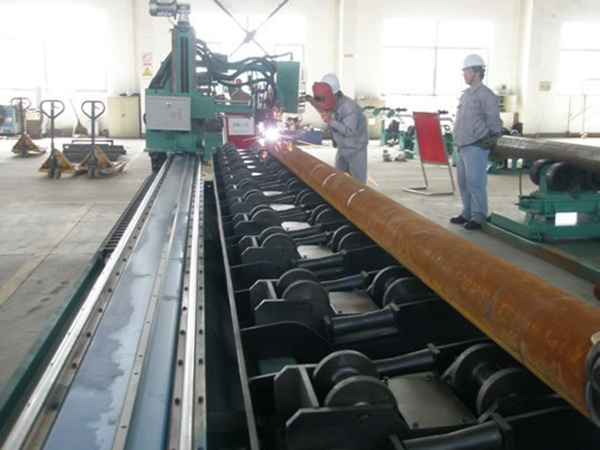

  • Pipe Plasma Beveling and Cutting Machine (Roller Bench Type)The pipe plasma beveling and cutting machine offers good on-line performance (designed as per the on-line equipment of the production line).
    It offers a beveling speed of ≤2Min/pipe bevel (DN200 SCH40).
    It has bevel cutting of: cutting off and with one bevel of the pipe simultaneously.

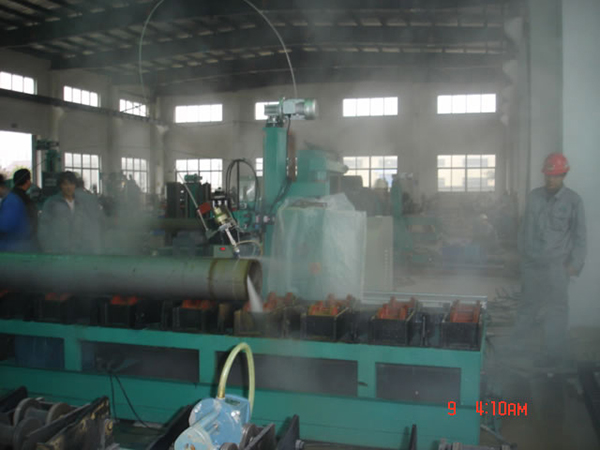

  • High Pressure Water Jet Cutting and Beveling MachineThe high pressure water jet cutting and beveling machine on-line performance is very good (designed as per the on-line equipment of the production line).
    The beveling capacity is ≤4Min /pipe bevel (DN200 SCH40).
    It offers bevel cutting of: cutting off pipe and with bevel simultaneously.

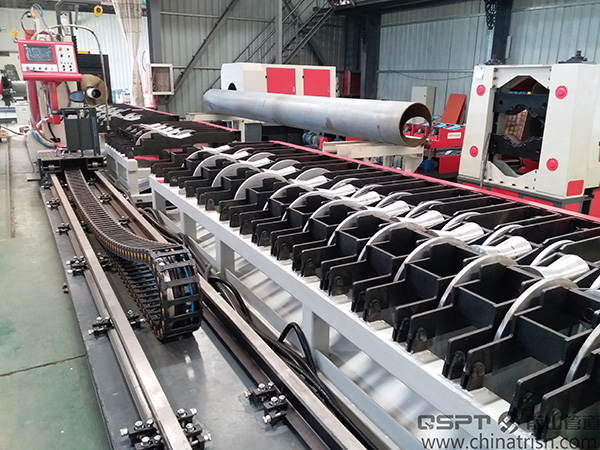

  • CNC Pipe Profile Cutting MachineThe CNC pipe profile cutting machine mainly consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system (or as per customer's request).

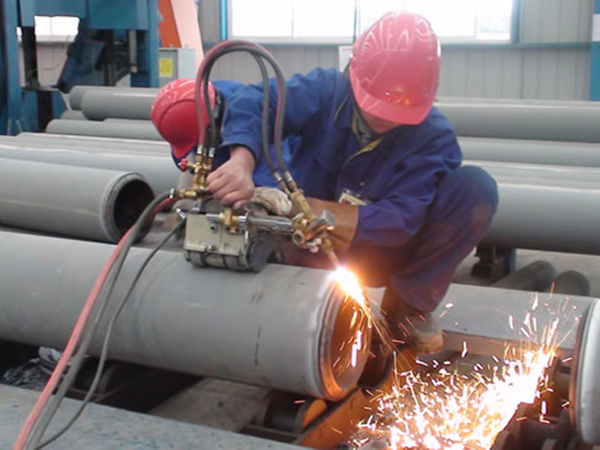

  • Magnetic Pipe Flame Cutting and Beveling MachineThe magnetic pipe flame cutting and beveling machine has a beveling speed of ≤5Min/pipe bevel (DN200, carbon steel pipe with standard wall thickness).
    It has bevel cutting of: cutting pipe and one bevel simultaneously.
    It offers a good bevel quality.
Pipe Fabrication Beveling Equipment

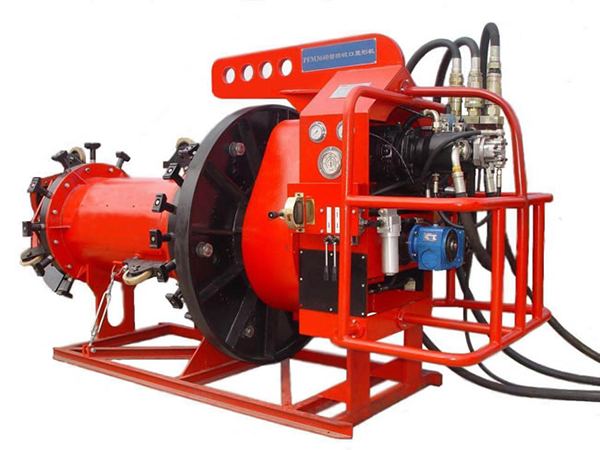

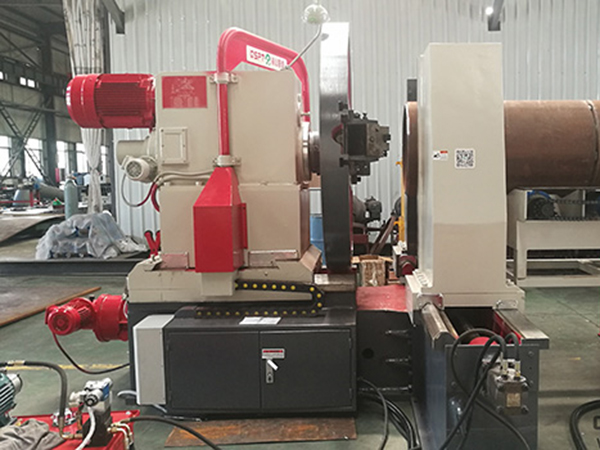

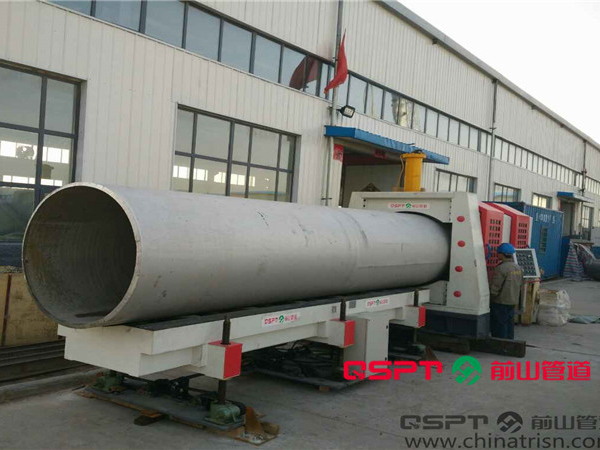

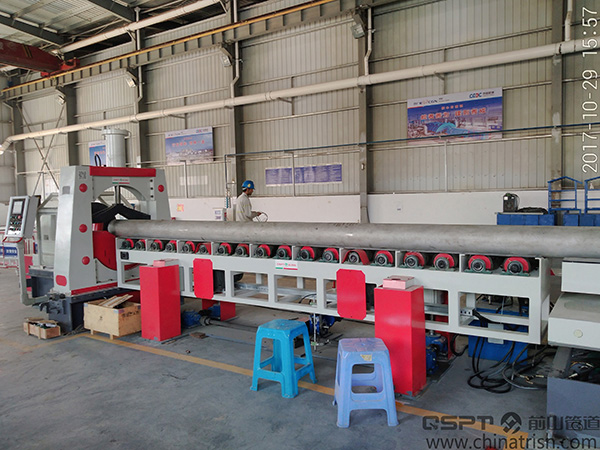

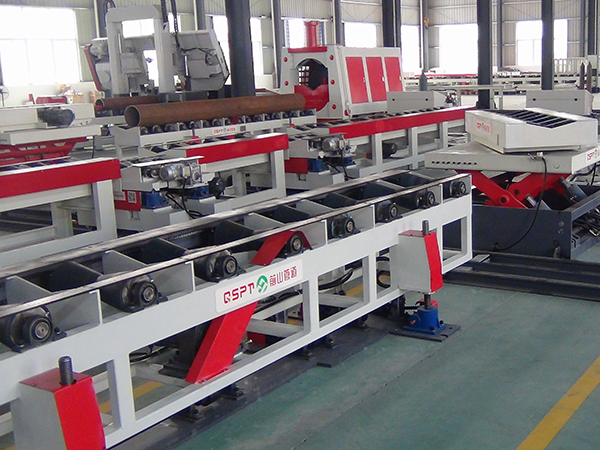

  • High Speed Pipe End Beveling MachineThe high speed pipe end beveling has a beveling speed of ≤5Min /pipe bevel (DN200 SCH40).
    It offers bevel cutting of: cutting a pipe with other equipment such as band saw and then machining each bevel.
    Bevel quality is very good.

Qianshan is a specialized pipe fabrication equipment manufacturer in China. We provide pipe fabrication production line, pipe fabrication workstation, pipe fabrication beveling equipment, pipe fabrication fitting-up equipment, pipe fabrication welding equipment, pipe fabrication conveying equipment and piping software as well as pipe fabrication services.
