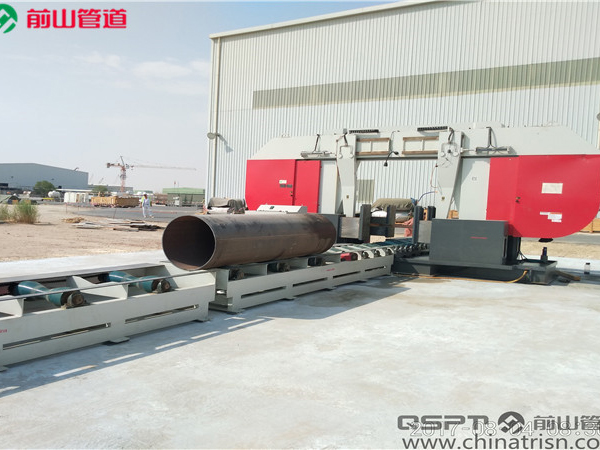

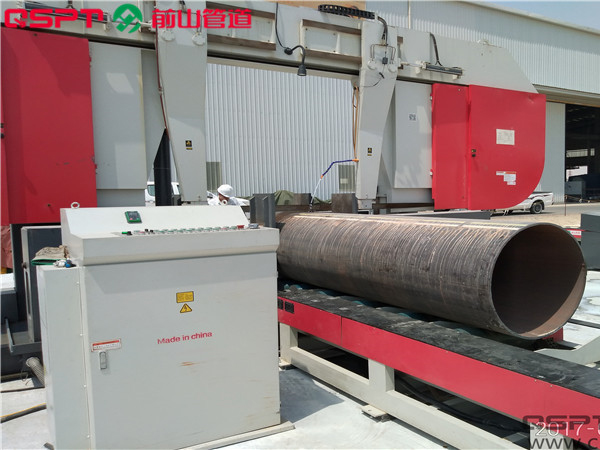

High Speed Pipe Cutting Band Saw Machine

Model: PCBSM-16Aa/24Aa/32Aa/40Aa/48Aa/60Aa

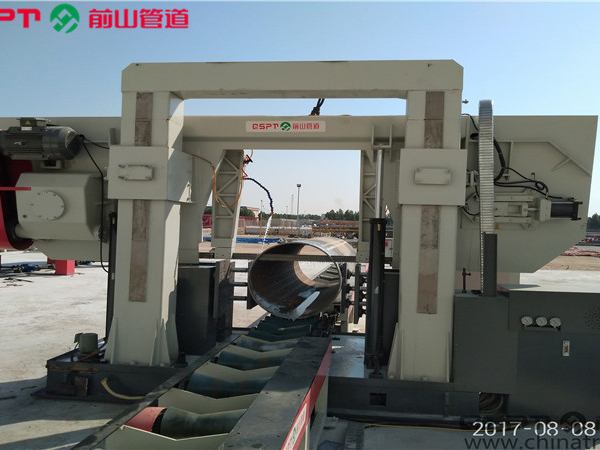

• Structure: Horizontal and with two columns, made special roller
• Pipe Diameter Applicable: DN400/DN600/DN800/DN1000/DN1200/DN1500
• Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel
• Feeding Speed: Stepless speed adjustment
• Clamping Mode: Both sides centering clamping automatically by hydraulic cylinder
• Band Saw Tension: Tensioning and loosen automatically by hydraulic
• Cooling System: Built in coolant pump
• Speed of the Band Saw: 18, 42 or 68 m/min/27, 52 or 78 m/min/15-80m/min
• Size of the Band Saw: 4570X*34*1.1/6700X*41*1.3/8880*67*1.6
• Dimension of Machine: 2300*1200*1650mm; 3600*1450*2100mm; 4550*1950*2600mm
• Weight of Machine: 1500KGS; 5000KGS; 9000KGS (±5%)
• Length-Measuring System: A mechanical length-measuring system can be provided if necessary to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system
• Conveying System: Cutting and beveling VF band systems driven by motor are equipped if necessary

Applications
The high speed pipe cutting band saw machine is used for projects with a majority of standard wall thickness and heavy wall thickness.

• The high speed pipe cutting band saw machine offers good on-line performance (designed as per the one line equipment of the production line).
• The cutting efficiency is ≤2Min /one pipeline bevel (DN200 SCH40).
• The high speed pipe cutting band saw machine has good opening quality.
• Rear mounted single pair clamp system; two-side synchronous clamping with hydraulic cylinders; built-in V-type roller centering conveying; VF stepless cutting speed control system; Auto cutting of single section of pipe after aligned with laser.
