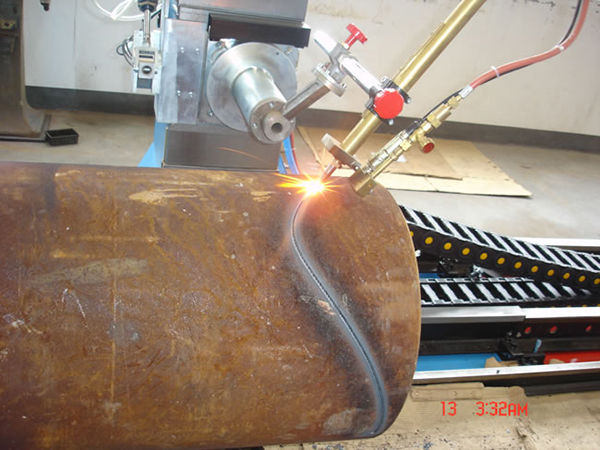

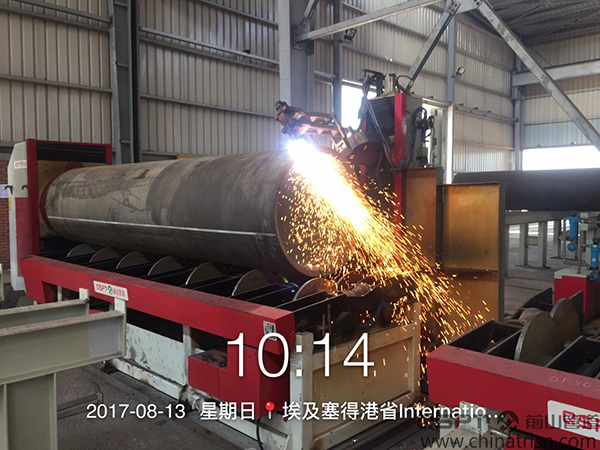

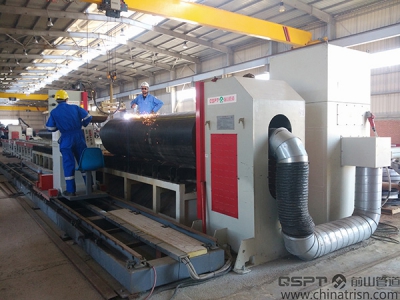

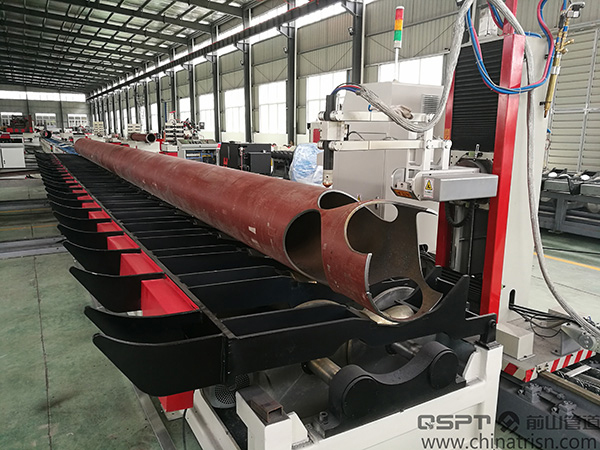

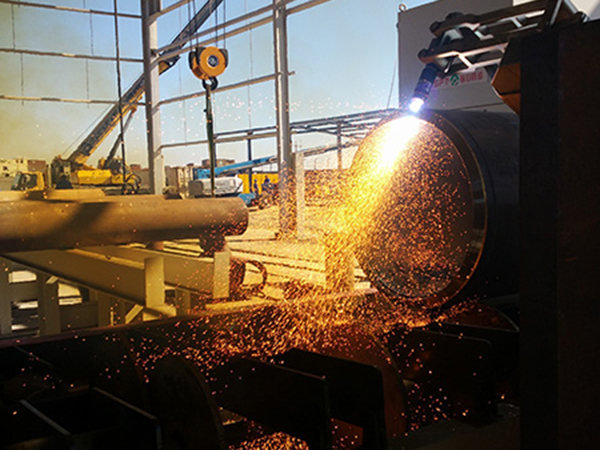

CNC Pipe Profile Cutting Machine
Model: PRPCM-16Ab/24Ab/32Ab/40Ab/48Ab/60Ab
Technical Parameters- Pipe Diameter Applicable: DN400/DN600/DN800/DN1000/DN1200/DN1500
- utting Pipe Wall Thickness: 1-25mm (plasma cutting) or as per plasma generator;
- 5-60mm (flame cutting)
- Cutting Speed: Plasma Cutting Speed: 50-3800mm/min
- Flame Cutting Speed: 50-750mm/min
- Number of Axis Under Control: 3-6 Axis
- Angle of Bevel: Plasma Cutting: ±45° (adjustable)
- Flame Cutting: ±60° (adjustable)
- Cutting Pipe Length: ≤12000mm
- Max Load Pipe Weight: 4000KGS
- CNC System: Original import IPC
- Control Way: Full CNC control with touch screen and man-machine interface
- Integrated Precision of the Machine:
- Portrait Moving Error: ≤±0.2mm/1000mm
- Turning Angle Error: ≤1° per 180°
- Surface Quality: Clean and no dregs
- Repeat Positioning Accuracy of Generatrix: ≤±0.3mm
Basic Configuration

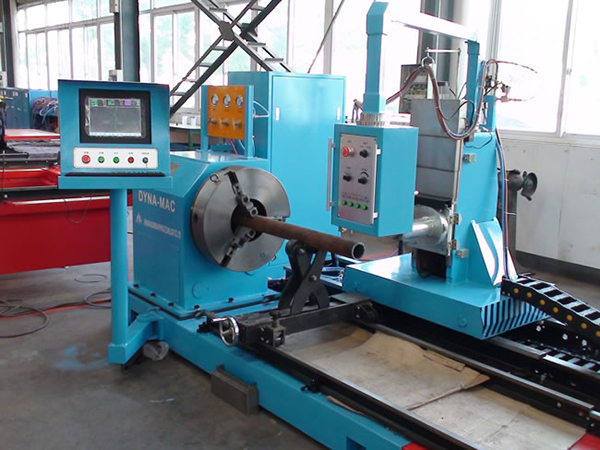

The CNC pipe profile cutting machine mainly consists of the control system, machine arm system, driving unit, clamp unit, support unit, guide rail, airway system, control cabinet and operation table, etc. One set of flame cutting system (including plasma cutting) is provided as the main cutting system (or as per customer's request).
Features
Performance Features: flame/plasma cutting; 3-6 control axises; With originally imported IPC from Taiwan to achieve numerical control via touch screen & man-machine interface; High positioning and moving precision; chuck+ roller bench type driving system as standard; two rows of big wheels coated with stainless; built-in V shape roller conveying system.
