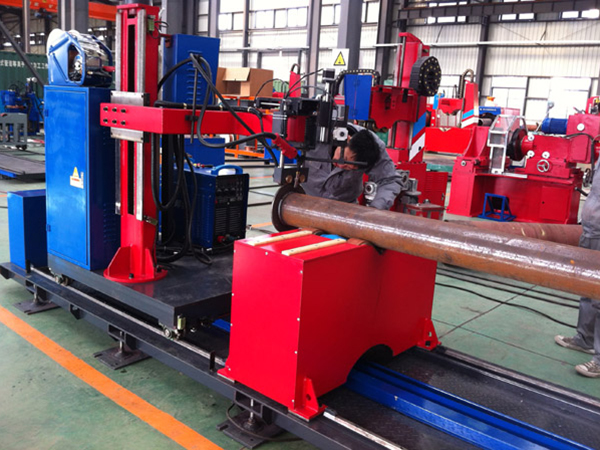

Automatic Slip-On Flange Welding Machine (FCAW/GMAW)

Model: PPAWM-24Da/32Da

• Pipe Diameter Applicable: DN100-600(φ114-610)/DN100-800(φ114-813)
• Pipe Wall Thickness Applicable: 3-30MM
• Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel, etc.
• Welds Applicable: Welding line of flange pipe

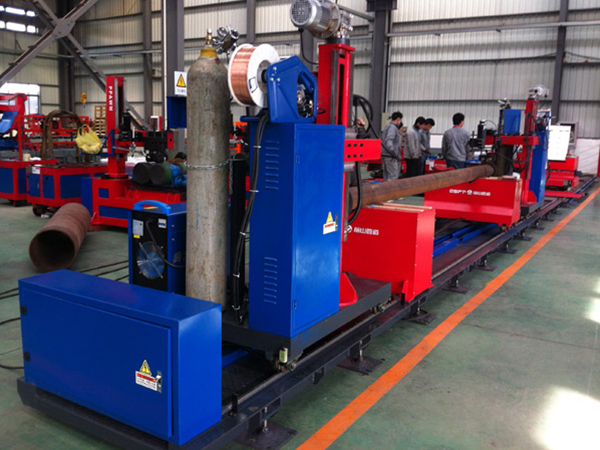

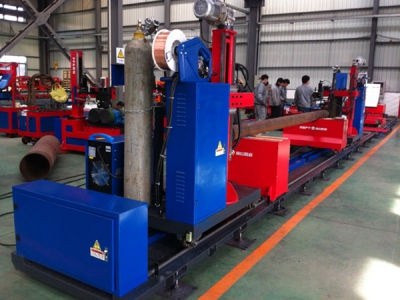

• Machine Head System: One welding head with two welding guns at one end/two welding heads with four welding guns both at two ends
• Driving System: Driven the motor of active idler wheel frame
• Clamping System: Clamped by chain or contact roller

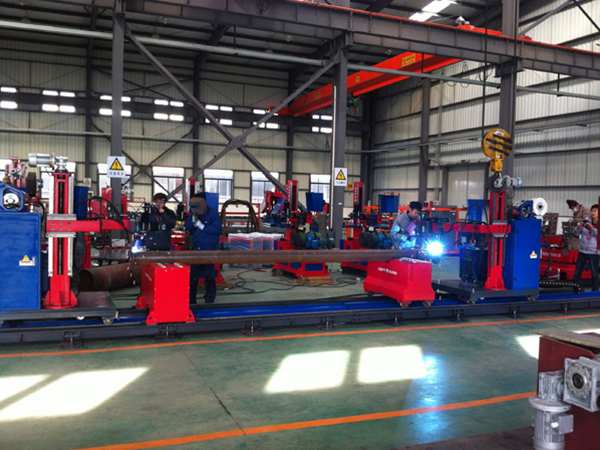

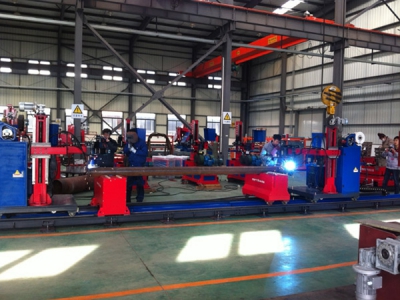

• Bracket System: Two sets of active idler wheel frame are to be set and it is adjustable according to the pipe length along the track
• Speed Regulation Mode: VF stepless speed control system
• Adjustment Mode: Electric cross regulator
• Swaying System: A product of our patented technology, driven by step motor and oscillating adjusting with digital display
• Control System: A product of our patented technology, PLC control
• Welding Procedure: FCAW/GMAW (or as per request)
• Welding Power: OEM products in China (or as per customers' demands)

Applications

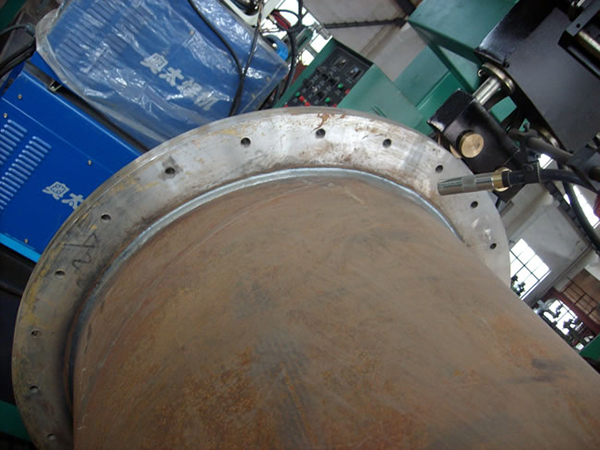

Slip-on flange for the welding of the internal and external incidence angle.

• The automatic slip-on flange welding machine offers excellent welding capacity (250-350 inch/day).
• The machine is easy to operate.
• The automatic slip-on flange welding machine offers excellent surface forming.
• It offers a welding compliance rate (without re-working for the skilled operator).
• The automatic slip-on flange welding offers good driving reliability.
