Mechanical Piping Fitting-Up Workstation
Model: PFUWS-16A1/PFUWS-16A2/PFUWS-24A1/PFUWS-24A2
Technical Parameters- Pipe Diameter Applicable: DN150-400 (φ168-426)/DN150-400 (φ168-426)/DN150-600 (φ60-610)/DN150-600 (φ60-610)
- Pipe Wall Thickness Applicable: 3-20mm
- Applicable Materials: Carbon steel, alloy steel, stainless steel and cryogenic steel

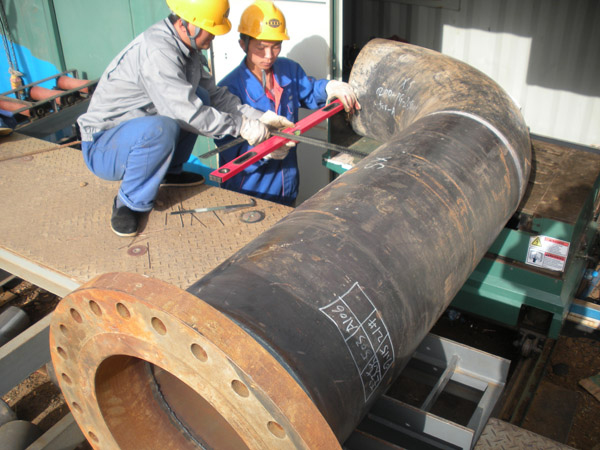

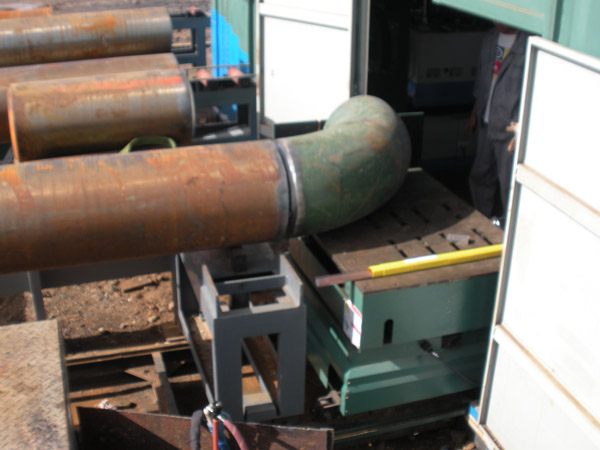

- Welding Line Applicable: Various butt welding lines of pipe spools such as pipe-pipe, pipe-elbow, pipe-flange, flange-flange, flange-elbow, etc.
- Fitting-up Length: 10m (fitting-up in single end)
Applications
The mechanical piping fitting-up workstation is used for projects with a majority of standard wall thickness pipes.

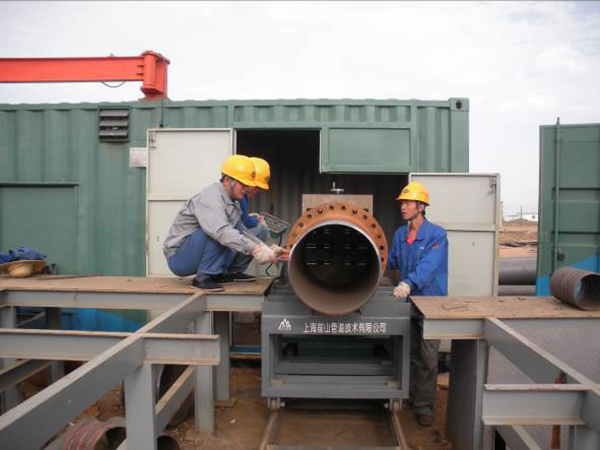

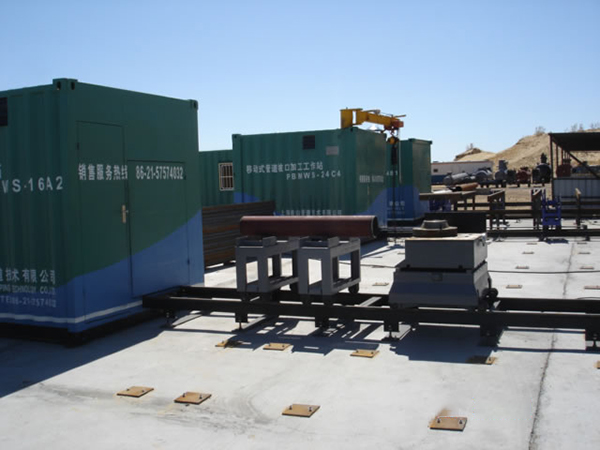

- The basic configuration of the mechanical piping fitting-up workstation consists of one piece of 3m/6m/3m/6m container made with special retrofit and one/two/one/two set(s) of piping prefabrication quick fitting-up machine.
- The mechanical piping fitting-up workstation offers a production efficiency of 250~500 O.Diameter-Inch per day (DN200 SCH40).
- It offers excellent equipment mobility (without limitation of radiation radius when using container as carrier).
As an experienced mechanical piping fitting-up workstation manufacturer and supplier based in China, Qianshan provides a wide range of products that includes an automatic piping welding workstation, high speed pipe cutting and beveling machine, pipe fabrication production line, high speed pipe end beveling machine, and more.
